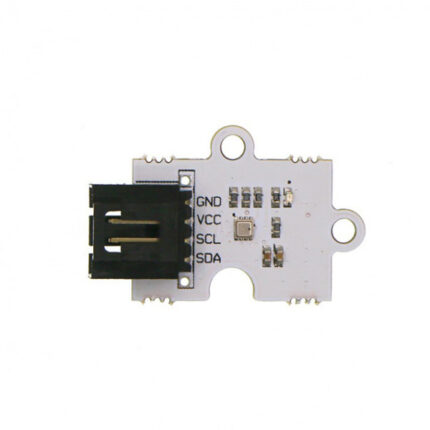

KSIX EBOTICS BAROMETRIC PRESSURE SENSOR
This barometric pressure sensor allows activating or deactivating
various robotics and programming projects according to the atmospheric
pressure or altitude recorded.
It is compatible with the Build & Code 4in1 EBOTICS board.
Technical specifications
Compatible with the Build & Code 4in1 EBOTICS board
3.3V nominal power supply
Compatible with I2C and SPI protocols
Atmospheric pressure range: 300 ~ 1100hPa Tolerance of + -1hPa
Temperature range 0

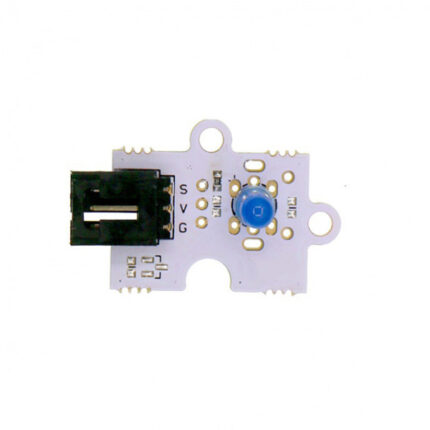

KSIX EBOTICS BLUE 5mm LED
An LED is a semiconductor electrical component (diode). When passing
through a small current, the diode emits light.
This LED is compatible with the Build & Code 4in1 EBOTICS board and is
ideal for illuminating a myriad of robotics and programming projects.
Technical specifications
Compatible with the Build & Code 4in1 EBOTICS board
Power: +3.3 / + 5V DC
Pin definition: S-Sigal V-VCC G-GND
Weight: 5g

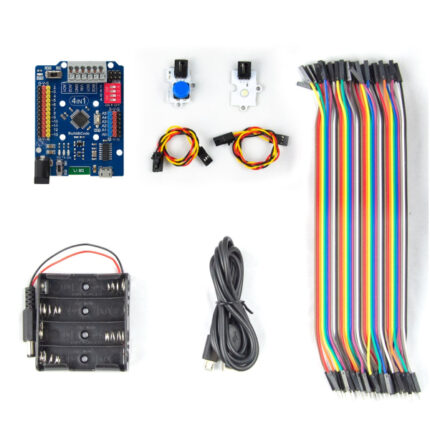

KSIX EBOTICS BUILD & CODE BASIC ELECTRONIC AND PROGRAMMING KIT
Build & Code Basic is an electronic kit for enthusiasts in robotics
and domot¬ics fields. It features a selection of electronic
components (sensors, LEDs, motors, etc.) which allows you to develop
basic and advanced projects. Designed for beginners and experts in
STEAM fields (acronym of Science, Technology, Engineering, Arts and
Math).
With the Build & Code Kit you will be able to assemble and program
your own electronic/interactive projects. For example, a LED switch or
a motor that is controlled by a light sensor.
The Build & Code Kit is also compatible with mBlock visual software,
which features a friendly and simple interface that is very convenient
for beginners in programming.
This product is designed for anyone who is interested in electronics
and programming and wants to apply ideas on interactive projects.
Basic description of the Build&Code UNO board
Build&Code Uno is a programmable board based on Arduino technology, it
has the same ATmega328P microcontroller as Arduino UNO. The board
power input can be via USB Type A-USB Type B cable (the standard
printer USB cable) or via battery. The recommended power input range
is 7-12V. It has a built-in LED which allows you to have visual
communication with the board.
Because the Build & Code Kit is based on Arduino technology it also
open source, which means that its electronic schemes can be found for
free on the Internet and its programming software is also free. There
are many internet communities available where you can ask questions,
download projects for free to replicate, modify or adapt them to your
needs. You can also participate in projects with other users or even
be an active member and help other people.
You can check our Build & Code educational resources, this includes
documents, basic concepts description, tutorials, simple projects to
get started, etc. These are available at the next link: Build & Code
Tech Resources.
TECHNICAL SPECS
* Build&Code UNO board (Microcontroller ATmega328P)
* Operating Voltage: 5V
* Input Voltage (recommended): 7-12V
* Input Voltage (limit): 6-20V
* 14 Digital I/O Pins (of which 6 provide PWM output)
* 6 PWM Digital I/O Pins
* 6 Analog Input Pins
* DC Current per I/O Pin: 20 Ma
* DC Current for 3.3V Pin: 50 Ma
* Clock Speed: 16 MHz
* Size: 68 x 53 mm
* Weight: 25 g
* Programmable with Arduino IDE and mBlock (Scratch 2.0)
* Compatible with Mac, Windows and Linux
* Build & Code documents and resources available at the next link:
Build & Code Tech Resources
KSIX EBOTICS DC MOTOR WITH PROPELLER
The DC Helix Motor is a simple DC motor. A small 3-blade propeller is
inserted on its shaft.
This DC motor with propeller is compatible with the Build & Code 4in1
EBOTICS board and allows hundreds of robotics and programming projects
to be done without danger for the little ones, since the blades are
smooth and safe.
Technical specifications
Compatible with the Build & Code 4in1 EBOTICS board
Low power propeller motor
Power: 5V DC
Current: 120mA
Interface type: digital
Dimensions: 39.33
KSIX EBOTICS MAKER INVENTOR KIT ELECTRONICS AND PROGRAMMING
Maker Inventor Kit is an electronics and programming kit designed for
the user to build and program their own inventions. It includes 5
projects and it is possible to create hundreds of more inventions. The
5 projects are already programmed on the Build & Code 4in1 board so
that they work without having to program.
The Maker Inventor Kit includes the Build & Code 4in1 electronic board
that, like a brain, controls the electronic components according to
the programmed instructions and brings the various inventions to life.
It is compatible with Arduino and various block programming software.
The Maker Inventor Kit is designed to learn how to program. The Build
& Code 4in1 board has already programmed the 5 inventions included in
the kit, to make them work when connecting the board, without the need
to program. Once the user develops his own programs, he can record
them on the Build & Code 4in1 board and erase the prerecorded ones.
Inventions can be controlled through a smartphone or tablet, thanks to
Bluetooth connectivity.
Technical specifications
* Build & Code 4in1
* ATmega328P Microcontroller
* Operating voltage: 5V DC
* Input voltage (recommended): 7-12V DC
* Input voltage (limit): 6-20V DC
* 12 digital input / output (I / O) ports
* 7 PWM digital input / output (I / O) ports
* 6 analogue input ports
* I / O pin current: 20mA
* Clock speed: 16Mhz
* Bluetooth 2.0 connectivity
* Direct connection for DC motors
* Size: 68 x 53mm
* Weight: 25g
* Programmable with Arduino IDE and various graphical block
programming software
* Compatible with MacOS, Windows and Linux
Parts Included 1 Build & Code 4in1 Controller Board 1 Ultrasonic
Distance Sensor 2 LDR Analog Light Sensors 1 Push Button 1 LED 5mm
White 2 DC Motors with Plastic Wheel 1 Passive Buzzer 10 Female-Female
20cm Cables 1 Battery Holder (for 6 batteries AA not included) 1 USB
Micro USB Cable 25 Color sticks 10 Binders with washer 15 Plastic
cable ties 24 Adhesive contact closure pieces 1 m String 13 Templates
(crane, owl, turtle and zootropic) 1 Car structure

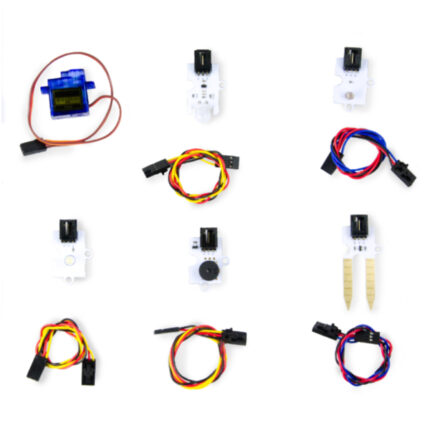

KSIX EBOTICS MAKER KIT 1 ROBOTICS AND PROGRAMMING
Enter the world of little inventors. Learn robotics and programming by
creating with the Maker Kits.
Use Maker Kit 1 to expand the parts in your Maker Control Kit and
combine them to create even more incredible projects. Use the
Build&Code 4-in-1 circuit board from the Maker Control Kit and let
your imagination soar!.
Box contents
* Analog light sensor
* Servomotor
* Passive buzzer
* PIR motion detector
* Soil moisture sensor
* White LED

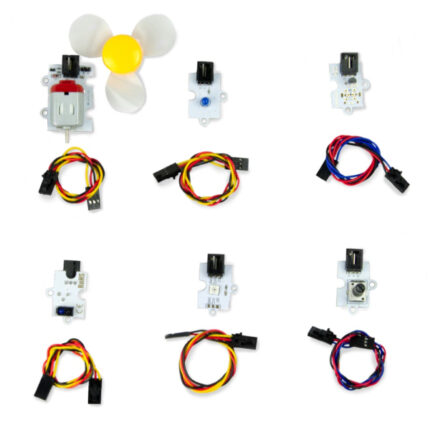

KSIX EBOTICS MAKER KIT 2 ROBOTICS AND PROGRAMMING
Enter the world of little inventors. Learn robotics and programming by
creating with the Maker Kits.
Use Maker Kit 2 to expand the parts in your Maker Control Kit and
combine them to create even more incredible projects. Use the
Build&Code 4-in-1 circuit board from the Maker Control Kit and let
your imagination soar!.
Box contents
* DC motor with propeller
* Temperature sensor
* RGB LED
* Blue LED
* Potentiometer
* IR line tracking sensor

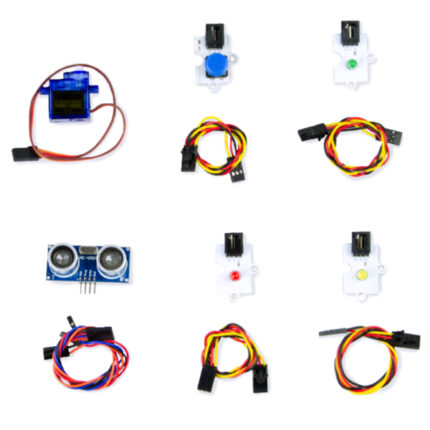

KSIX EBOTICS MAKER KIT 3 ROBOTICS AND PROGRAMMING
Enter the world of little inventors. Learn robotics and programming by
creating with the Maker Kits.
Use Maker Kit 3 to expand the parts in your Maker Control Kit and
combine them to create even more incredible projects. Use the
Build&Code 4-in-1 circuit board from the Maker Control Kit and let
your imagination soar!.
Box contents
* Red LED
* Yellow LED
* Green LED
* Button
* Ultrasonic distance sensor
* Servomotor
KSIX EBOTICS MINI LAB ELECTRONIC AND PROGRAMMING KIT WITH MULTIPLE COMPONENTS
Educational robotics kit designed to get you started in the world of
electronics. It is composed of different components that are set on a
table-base. With it you can make a variety of electronic projects for
all levels. For example: an alarm that is activated depending on the
quantity of light received, make a potentiometer to control a
servomotor position or to control a LED brightness, etc.
The board included in the Mini Lab is the Build&Code 4in1 board which
is based on Arduino technology, it features built-in Bluetooth 2.0
technology, and it can control DC motors, servo motors, sensors and
actuators without the need to add specific sensors-shields or
motor-shields.
Because Build&Code 4in1 is based on Arduino technology, any project
developed for the Arduino platform is compatible with Mini Lab and
vice versa. You can download any Arduino project and use it on the
Mini Lab.
You can also access the Arduino forums and communities to get help and
solve any issues.
Build&Code is an open source platform, this means that you can find
many free tutorials and exercises to learn how to use the Mini Lab
components. Because it is compatible with Arduino, it is also
compatible with the free software mBlock, which has a friendly
interface that it is easier to use for beginners.
This product is designed for anyone who is interested in robotics and
programming. It is an ideal kit for schools that teach in the STEAM
fields (Science, Technology, Engineering, Art and Math).
Assembling and programming the Mini Lab
To assemble the Mini Lab you will need to build its structure with the
included pieces, then you have to do the cable connection between the
sensors, motors and the Build&Code 4in1 board. Finally, you have to
code its functions and upload the program to the Build&Code 4in1 board
so you can use the Mini Lab.
We have available an installation guide so you can configure the
Arduino IDE and mBlock software to be able to communicate with the
Build&Code 4in1 in the next link: Build&Code UNO Introduction
We also have available Mini Lab online project which will help you to
learn how to program the its components once it is completely
assembled.
Technical Specifications of the Build&Code 4in1 board
* Build &, Code 4in1 (Microcontroller ATmega328P)
* Operating Voltage: 5V
* Input Voltage (recommended): 7-12V
* Input Voltage (limit): 6-20V
* 12 Digital I/O Pins
* 7 PWM Digital I/O Pins
* 6 Analog Input Pins
* DC Current per I/O Pin: 20 mA
* Clock Speed: 16 MHz
* Connectivity Bluetooth 2.0
* DC Motor direct connection
* Size: 68 x 53 mm
* Weight: 25 g
* Programmable with Arduino IDE, mBlock (Scratch 2.0) and BitBloq
platforms
* Compatible with Mac OS, Windows and Linux
KSIX EBOTICS PIR MOTION SENSOR
The PIR motion sensor captures the presence of a human or animal by
detecting the difference between the heat emitted by the body and the
space around it.
This PIR motion sensor is compatible with the Build & Code 4in1
EBOTICS board and allows hundreds of robotics and programming projects
that require the detection of any change in its vicinity, at a
distance of up to 5 meters.
Technical specifications
Compatible with the Build & Code 4in1 EBOTICS board
Power: 5V DC
Detection range: 4 to 5 meters
Interface type: digital
KSIX EBOTICS RAIN AND STEAM SENSOR
The rain and vapor sensor measures the humidity level. When it detects
a higher humidity level, the output voltage increases.
This rain and vapor sensor is compatible with the Build & Code 4in1
EBOTICS board and allows hundreds of robotics and programming projects
to be activated or deactivated according to the registered humidity
level.
Technical specifications
Compatible with the Build & Code 4in1 EBOTICS board
Power: 3.3V or 5V
Output voltage signal: 0 ~ 4.5V or 0 ~ 3.0V
Interface type: analog
Pin definition: S-Sigal V-VCC G-GND
Dimensions: 30x20x6 mm
KSIX EBOTICS RECHARGABLE BATTERY LI-POLYMER 3.7V 1200MAH FOR MBOT
Rechargeable battery compatible with Makeblock's mBot educational
robot.
Never run out of battery power and keep learning electronics and
programming with the mBot.
Technical information
Ksix rechargeable battery
Li-polymer battery
Capacity: 1200 mAh
Voltage: 3.7V
Compatible with Makeblock mBot educational robot
