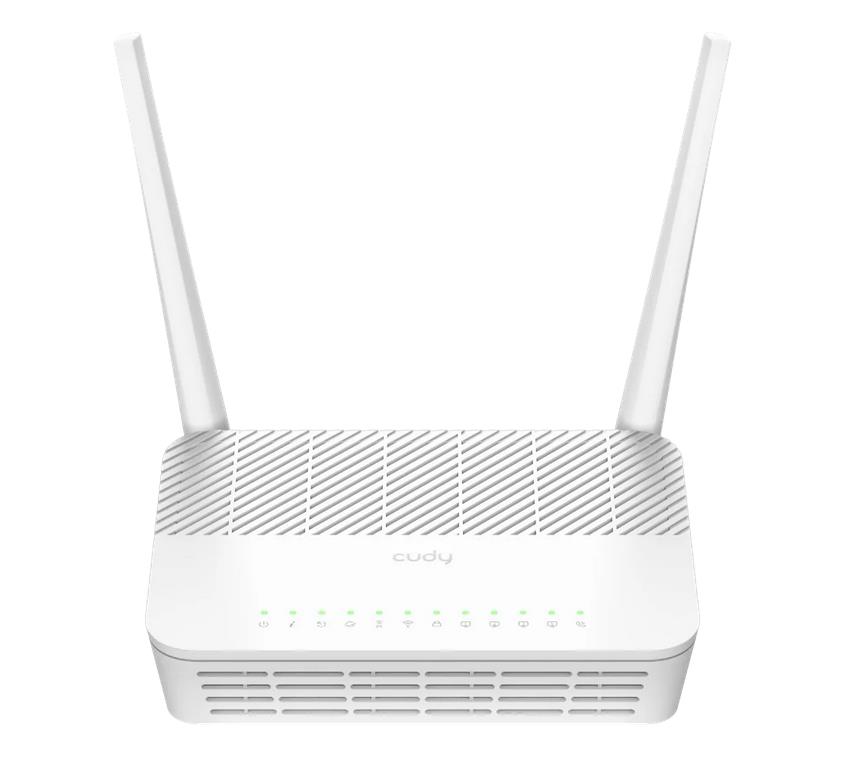

CUDY AC1200 WI-FI VOIP xPON ROUTER

An xPON Wi-Fi router featuring VoIP, GPON/EPON dual modes, CWMP, OMCI, IPTV  (IGMP Proxy/Bridge/Tag VLAN), and EasyMesh, suitable for FTTH solution  deployment with enhanced voice services.• 1.15 GHz Dual-Core CPU• Max  2.48 Gbps GPON / 1.25 Gbps EPON• 4-Stream Dual-Band Wi-Fi 5• 867 Mbps + 300  Mbps Wi-Fi 1• 4× GbE and 1× FXS  RJ11• OMCI/OAM/TR069/TR098/TR111/TR143/TR181• EasyMesh. CPUChipsetRTL9607CCPU Details1.15 GHz Dual-CoreMemory/StorageFlash/ROM128 MB (1 Gbit) NANDDDR/RAM256 MB (2 Gbit) DDR3xPONProtocolsGPON (ITU G. 984 standard | Class B+)EPON (802.3ah)SpeedGPON: 2.488 Gbps Downstream / 1.244 Gbps UpstreamEPON: 1.25 Gbps Downstream / UpstreamWavelengthTX: 1310 nmRX: 1490 nmMax Transmission Distance20 kmWireless5 GHz Wi-Fi Speed867 Mbps2.4 GHz Wi-Fi Speed300 Mbps5 GHz Wi-Fi Streams2T2R (2×2 MIMO)2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)Wi-Fi Antennas2× Fixed5 GHz Antenna Gain Max5dBi2.4 GHz Antenna Gain Max5dBiFEM or PA/LNA5 GHz: 2× Internal2.4 GHz: 2× InternalBeamformingTRUERange PerformanceMax: 170 m (558 ft)Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.Wall PerformanceTwo wooden walls with thickness < 10 cm (4)One concrete wall with thickness < 20 cm (7)InterfacesSC/APC Port1Gigabit RJ45 Ports4Ethernet Notes1× LAN/WAN port, the rest are LAN ports.FXS Ports1× RJ11USB-A 2.0 PortsOptional for ISP OrderLEDPowerPONLOSInternet2.4 GHz Wi-Fi5 GHz Wi-FiWPSLANPhysical ButtonsPower On/Off ButtonReset ButtonWPS ButtonWi-Fi On/Off ButtonPower InputDC JackPowerPower MethodsDCDC12V 1APower AdapterInput: 100-240V~, 50/60 HzOutput: 12V⎓1AWirelessWi-Fi StandardsWi-Fi 5Max Wi-Fi Modulation256-QAMWi-Fi EfficiencyMU-MIMOWi-Fi Efficiency NoteMU-MIMO available on 5 GHzMax Capacity128Recommended Client Upper Limit50Max Wi-Fi Channel Width80 MHzWi-Fi SecurityWPA/WPA2Guest Network2.4 GHz, 5 GHzWPSTRUEGeneralOperation ModesxPON Wi-Fi RouterMeshEasyMesh R1Mesh BackhaulWireless BackhaulWired BackhaulWAN ModeDHCPStatic IPPPPOENetworkQoS4 Queues802.1p ClassificationDSCPTraffic ShapingBy MACBy IPBy PortDHCPAddress ReservationDHCP Client ListServerIP VersionsIPv4/IPv6IPv6 ProtocolsDynamic (SLAAC/DHCPv6)Static (Fixed IP)IPTV/VLANBridgeTag VLANTTL CustomizationExtendSpoofCustomIGMPIGMP ProxyForwardingPort ForwardingUPnPDMZFirewallSPI FirewallUtilitiesDNS OptionsManual DNSOnline DetectionTRUEManagementAll Devices ManagementMAC FilterIP/MAC BindingContent ManagementDomain FilterIP FilterPort FilterSystemLocal Control MethodConfig Web PageRemote Control MethodTR069/TR098/TR111/TR143/TR181OMCIOAMFirmware UpgradeLocal UpdateReliabilityBackup and Restore
